INTRODUCTION
PETROLEUM REFINERIES ARE LARGE INDUSTRIAL COMPLEXES WHERE CRUDE OIL IS PROCESSED AND CONVERTED INTO USEFUL PRODUCTS SUCH AS LPG, PETROL, DIESEL, AVIATION TURBINE FUEL (ATF), LUBRICATING OILS, GREASE AND MANY OTHER PETROCHEMICAL PRODUCTS. CRUDE OIL IN ITS NATURAL FORM IS A COMPLEX MIXTURE OF HYDROCARBONS ALONG WITH IMPURITIES SUCH AS SULFUR, NITROGEN COMPOUNDS, METALS, SALTS AND WATER.

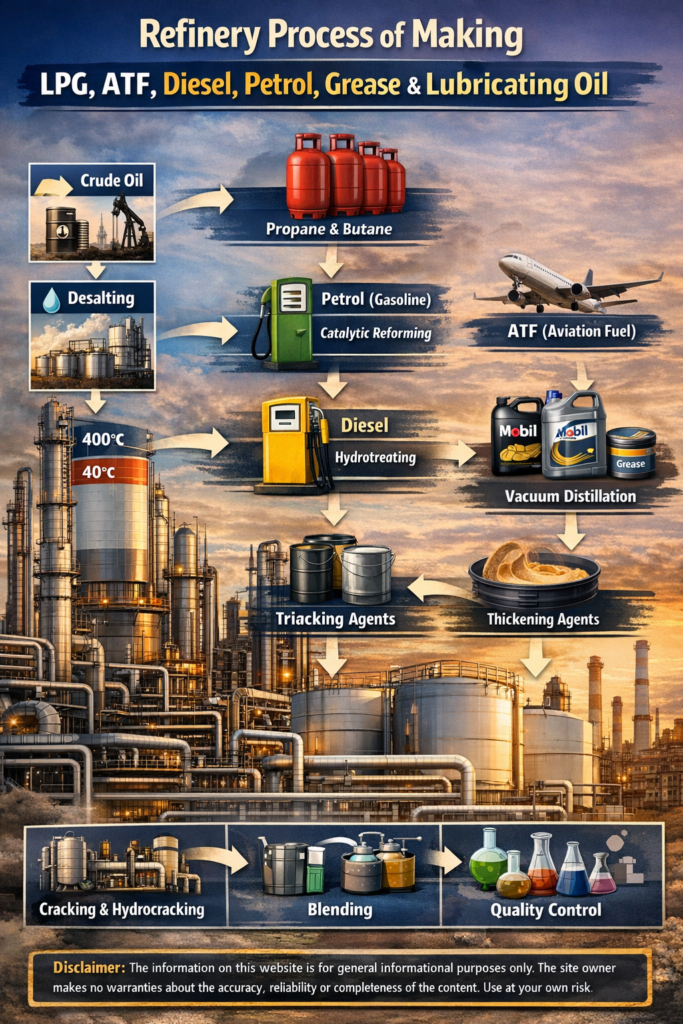

A REFINERY SEPARATES AND TRANSFORMS CRUDE OIL THROUGH SEVERAL PHYSICAL AND CHEMICAL PROCESSES. THESE PROCESSES INCLUDE DISTILLATION, CRACKING, REFORMING, TREATING, BLENDING AND FINISHING OPERATIONS. THE GOAL OF A REFINERY IS TO MAXIMIZE VALUABLE PRODUCTS WHILE MINIMIZING WASTE.
DIFFERENT PETROLEUM PRODUCTS ARE OBTAINED BECAUSE EACH HYDROCARBON HAS A DIFFERENT BOILING POINT AND MOLECULAR STRUCTURE. BY HEATING CRUDE OIL AND SEPARATING IT INTO FRACTIONS, REFINERIES OBTAIN VARIOUS FUELS AND LUBRICANTS USED IN TRANSPORTATION, INDUSTRY AND DOMESTIC APPLICATIONS.
THIS ARTICLE EXPLAINS IN DETAIL HOW LPG, PETROL, DIESEL, ATF, GREASE, AND LUBRICATING OILS ARE PRODUCED IN A MODERN REFINERY.
1. CRUDE OIL AND ITS COMPOSITION
CRUDE OIL IS A NATURALLY OCCURRING FOSSIL FUEL FORMED OVER MILLIONS OF YEARS FROM THE REMAINS OF PLANTS AND MARINE ORGANISMS BURIED UNDER SEDIMENTARY ROCKS. UNDER HIGH TEMPERATURE AND PRESSURE, THESE ORGANIC MATERIALS TRANSFORM INTO HYDROCARBONS.
CRUDE OIL MAINLY CONTAINS:
- PARAFFINS (ALKANES)
- NAPHTHENES (CYCLOALKANES)
- AROMATICS
- SULFUR COMPOUNDS
- NITROGEN COMPOUNDS
- OXYGEN COMPOUNDS
- METALS SUCH AS VANADIUM AND NICKEL
THE EXACT COMPOSITION OF CRUDE OIL VARIES DEPENDING ON ITS GEOGRAPHICAL SOURCE. FOR EXAMPLE, MIDDLE EASTERN CRUDE DIFFERS FROM AMERICAN OR RUSSIAN CRUDE.
BEFORE REFINING BEGINS, CRUDE OIL MUST UNDERGO PRETREATMENT AND DESALTING.
2. CRUDE OIL PRETREATMENT AND DESALTING
CRUDE OIL EXTRACTED FROM WELLS CONTAINS WATER, SALTS, SEDIMENTS AND IMPURITIES. IF THESE CONTAMINANTS ENTER REFINERY EQUIPMENT, THEY CAN CAUSE CORROSION, FOULING AND OPERATIONAL PROBLEMS.
THEREFORE, CRUDE OIL UNDERGOES DESALTING, WHICH INVOLVES:
- MIXING CRUDE OIL WITH WATER.
- PASSING THE MIXTURE THROUGH AN ELECTRIC FIELD.
- REMOVING DISSOLVED SALTS AND SEDIMENTS.
AFTER DESALTING, THE CRUDE OIL IS HEATED AND SENT TO THE DISTILLATION UNIT, WHICH IS THE FIRST MAJOR REFINING PROCESS.
3. FRACTIONAL DISTILLATION PROCESS
FRACTIONAL DISTILLATION IS THE PRIMARY SEPARATION PROCESS IN A REFINERY. CRUDE OIL IS HEATED TO ABOUT 350–400°C AND THEN SENT INTO A TALL COLUMN CALLED THE FRACTIONATING TOWER.
INSIDE THE COLUMN:
- TEMPERATURE DECREASES FROM BOTTOM TO TOP.
- DIFFERENT HYDROCARBONS CONDENSE AT DIFFERENT LEVELS BASED ON THEIR BOILING POINTS.
MAIN FRACTIONS OBTAINED INCLUDE:
| PRODUCT | BOILING RANGE |
| LPG | BELOW 40°C |
| PETROL (GASOLINE) | 40 – 200°C |
| KEROSENE / ATF | 150 – 275°C |
| DIESEL | 250 – 350°C |
| LUBRICATING OIL | 300 – 400°C |
| RESIDUE (BITUMEN) | ABOVE 400°C |
THESE FRACTIONS ARE THEN FURTHER PROCESSED TO IMPROVE QUALITY AND PERFORMANCE.

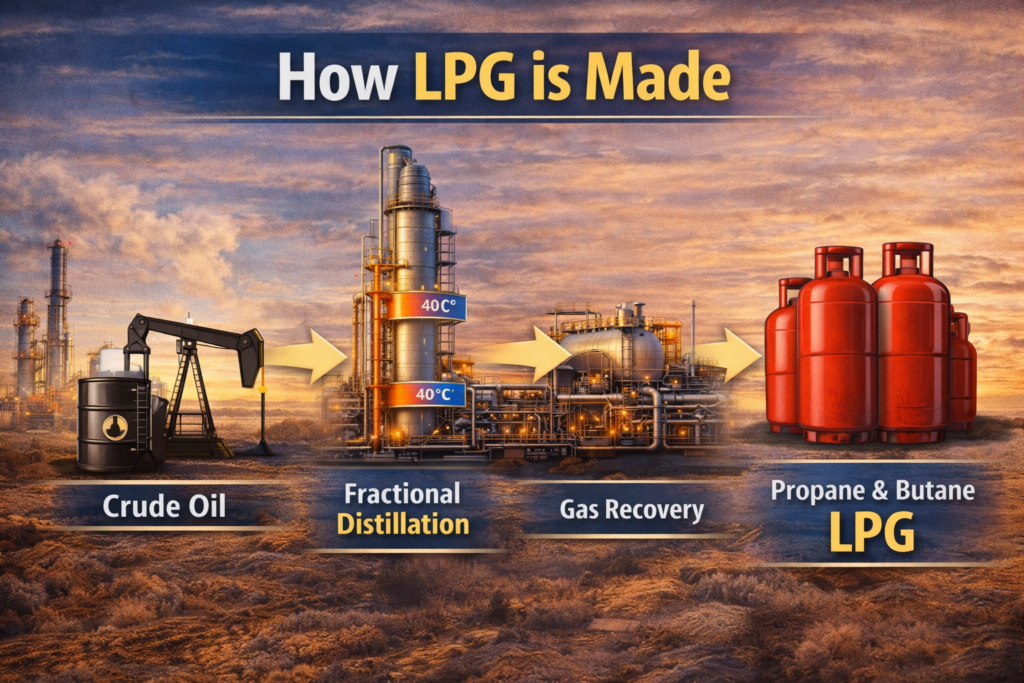

4. PRODUCTION OF LPG (LIQUEFIED PETROLEUM GAS)
WHAT IS LPG?
LPG MAINLY CONSISTS OF PROPANE AND BUTANE HYDROCARBONS. IT IS WIDELY USED AS:
- DOMESTIC COOKING FUEL
- INDUSTRIAL FUEL
- AUTOMOTIVE FUEL (AUTO LPG)
HOW LPG IS PRODUCED
LPG IS PRODUCED DURING SEVERAL REFINERY PROCESSES:
1. ATMOSPHERIC DISTILLATION
LIGHT GASES INCLUDING PROPANE AND BUTANE ARE SEPARATED AT THE TOP OF THE DISTILLATION COLUMN.
2. CRACKING UNITS
PROCESSES LIKE FLUID CATALYTIC CRACKING (FCC) AND HYDROCRACKING BREAK LARGE HYDROCARBONS INTO SMALLER MOLECULES, PRODUCING ADDITIONAL LPG.
3. GAS PROCESSING UNITS
THE LIGHT HYDROCARBON GASES ARE SEPARATED USING ABSORPTION AND COMPRESSION SYSTEMS.
LPG PURIFICATION
THE GASES ARE TREATED TO REMOVE:
- HYDROGEN SULFIDE
- SULFUR COMPOUNDS
- MOISTURE
AFTER PURIFICATION, LPG IS LIQUEFIED UNDER PRESSURE AND STORED IN CYLINDERS OR TANKS.

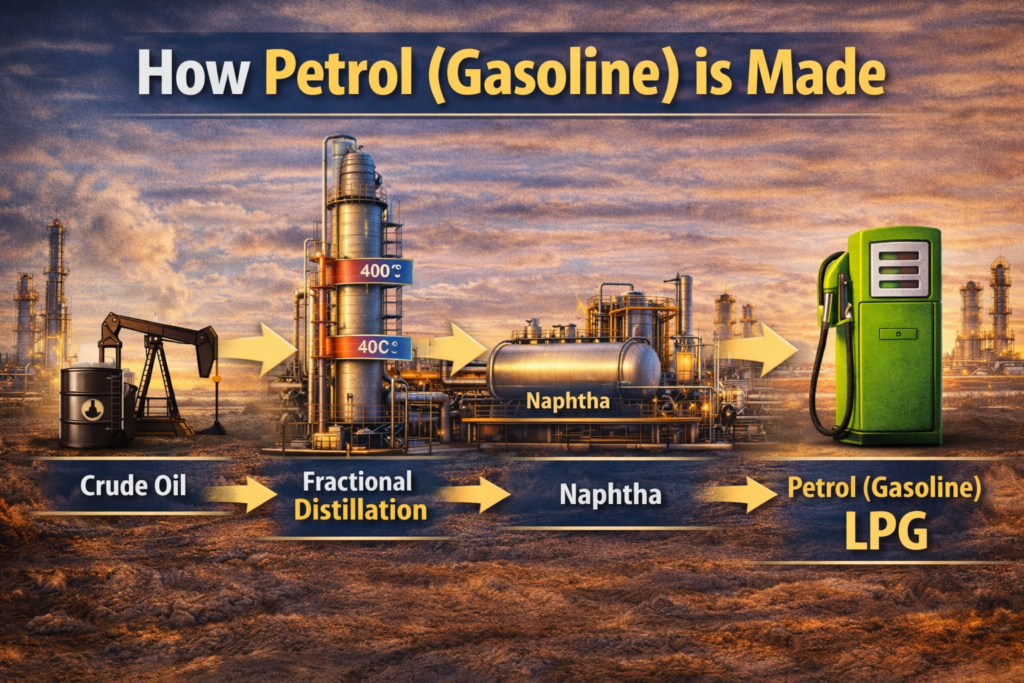

5. PRODUCTION OF PETROL (GASOLINE)
WHAT IS PETROL?
PETROL IS A LIGHT HYDROCARBON FUEL USED IN SPARK IGNITION ENGINES SUCH AS CARS AND MOTORCYCLES.
PETROL MUST HAVE GOOD PROPERTIES INCLUDING:
- HIGH OCTANE NUMBER
- LOW SULFUR CONTENT
- PROPER VOLATILITY
HOW PETROL IS MADE
PETROL IS PRODUCED FROM SEVERAL REFINERY STREAMS:
1. STRAIGHT RUN GASOLINE
OBTAINED DIRECTLY FROM CRUDE OIL DISTILLATION.
2. CATALYTIC CRACKING
HEAVY HYDROCARBONS ARE BROKEN INTO LIGHTER MOLECULES USING CATALYSTS.
THIS INCREASES PETROL PRODUCTION SIGNIFICANTLY.
3. CATALYTIC REFORMING
LOW-OCTANE HYDROCARBONS ARE CONVERTED INTO HIGH-OCTANE AROMATIC COMPOUNDS.
THIS IMPROVES FUEL QUALITY.
4. ALKYLATION AND ISOMERIZATION
THESE PROCESSES PRODUCE HIGH-QUALITY GASOLINE BLENDING COMPONENTS.
PETROL BLENDING
FINAL PETROL IS MADE BY BLENDING SEVERAL COMPONENTS:
- REFORMATE
- ALKYLATE
- FCC GASOLINE
- ADDITIVES
ADDITIVES IMPROVE:
- ENGINE PERFORMANCE
- COMBUSTION EFFICIENCY
- EMISSION CONTROL

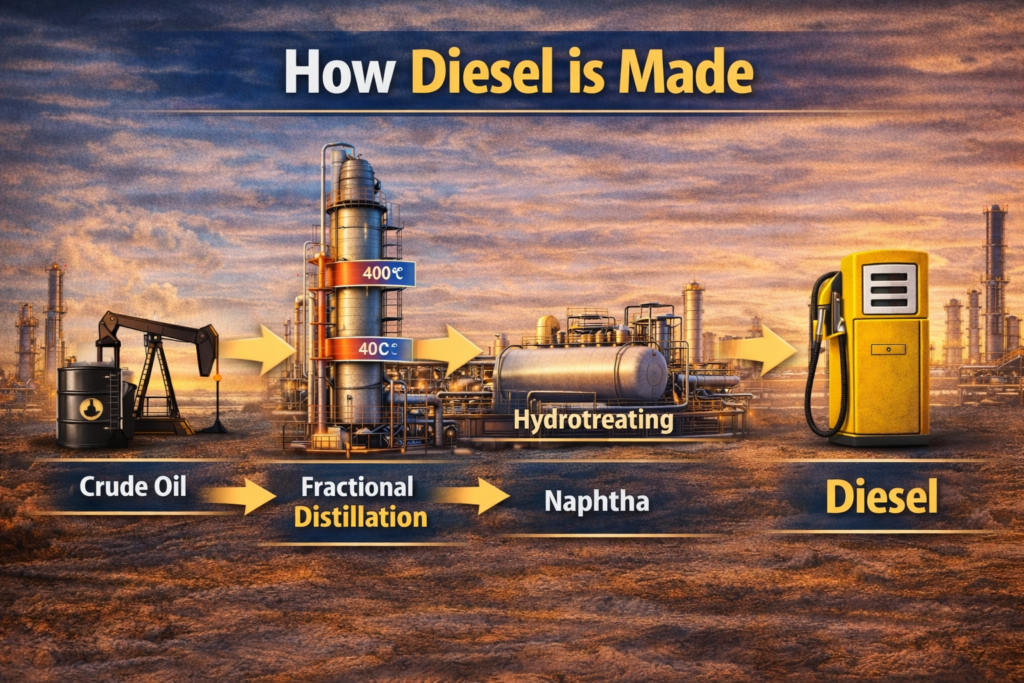

6. PRODUCTION OF DIESEL
WHAT IS DIESEL?
DIESEL FUEL IS USED IN COMPRESSION IGNITION ENGINES SUCH AS TRUCKS, BUSES, GENERATORS, TRACTORS AND SHIPS.
DIESEL MUST HAVE:
- HIGH CETANE NUMBER
- LOW SULFUR
- GOOD LUBRICITY
DIESEL PRODUCTION PROCESS
1. DISTILLATION
DIESEL FRACTION IS OBTAINED FROM THE DISTILLATION COLUMN BETWEEN 250°C AND 350°C.
2. HYDROTREATING
DIESEL IS TREATED WITH HYDROGEN IN THE PRESENCE OF CATALYSTS TO REMOVE:
- SULFUR
- NITROGEN
- AROMATICS
THIS PROCESS IMPROVES FUEL QUALITY AND REDUCES EMISSIONS.
3. HYDROCRACKING
HEAVY HYDROCARBONS ARE CONVERTED INTO ADDITIONAL DIESEL USING HYDROGEN AND CATALYSTS.
DIESEL BLENDING
VARIOUS STREAMS ARE BLENDED TO ACHIEVE DESIRED SPECIFICATIONS.

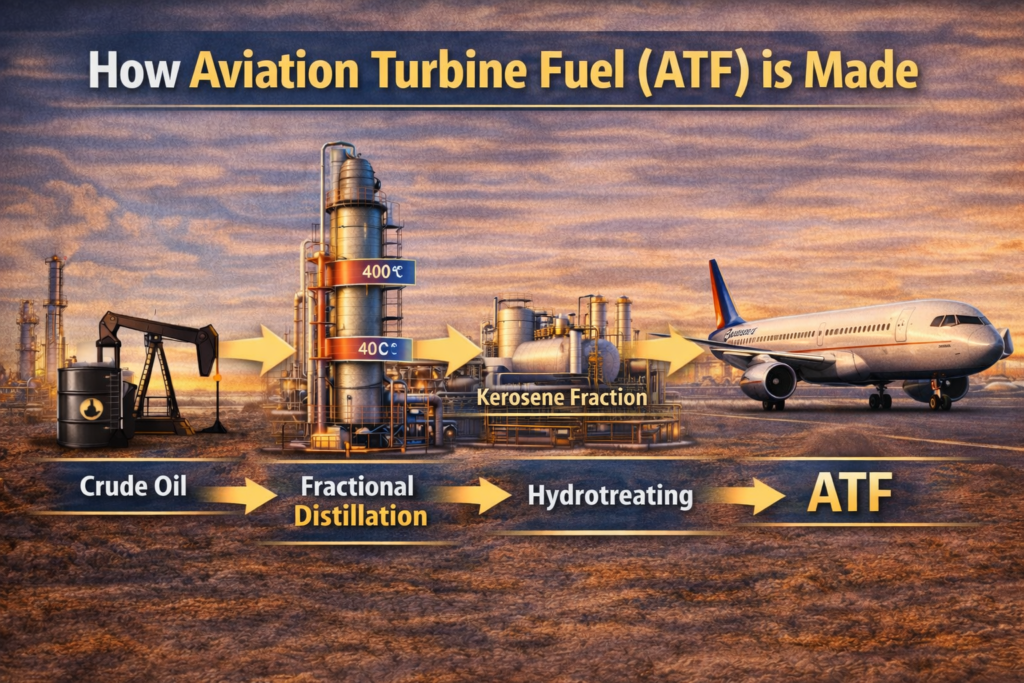

7. PRODUCTION OF AVIATION TURBINE FUEL (ATF)
WHAT IS ATF?
ATF IS A SPECIAL TYPE OF HIGH-QUALITY KEROSENE FUEL USED IN JET AIRCRAFT ENGINES.
ATF MUST MEET STRICT STANDARDS BECAUSE AIRCRAFT ENGINES OPERATE UNDER EXTREME CONDITIONS.
KEY REQUIREMENTS INCLUDE:
- HIGH THERMAL STABILITY
- LOW FREEZING POINT
- CLEAN COMBUSTION
- HIGH ENERGY DENSITY
ATF MANUFACTURING
1. KEROSENE FRACTION
ATF ORIGINATES FROM THE KEROSENE FRACTION OF CRUDE OIL OBTAINED IN THE DISTILLATION COLUMN.
2. HYDROTREATING
THE KEROSENE FRACTION IS TREATED WITH HYDROGEN TO REMOVE SULFUR AND IMPURITIES.
3. SPECIAL ADDITIVES
ADDITIVES ARE ADDED TO IMPROVE:
- STATIC ELECTRICITY CONTROL
- ANTI-ICING PROPERTIES
- CORROSION PROTECTION
AFTER QUALITY TESTING, ATF IS STORED IN SPECIALIZED TANKS BEFORE BEING TRANSPORTED TO AIRPORTS.

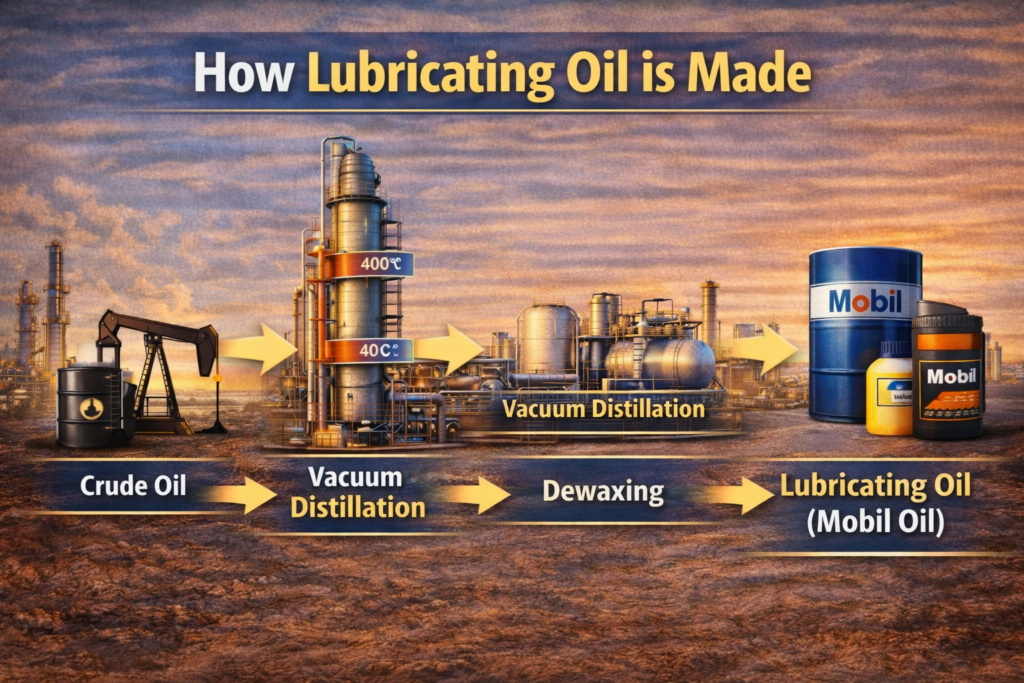

8. PRODUCTION OF LUBRICATING OIL (MOBIL OIL)
WHAT IS LUBRICATING OIL?
LUBRICATING OIL, COMMONLY CALLED MOBIL OIL, IS USED TO REDUCE FRICTION BETWEEN MOVING MECHANICAL PARTS.
APPLICATIONS INCLUDE:
- CAR ENGINES
- INDUSTRIAL MACHINERY
- TURBINES
- GEARBOXES
HOW LUBRICATING OIL IS MADE
LUBRICATING OILS ARE PRODUCED FROM HEAVY FRACTIONS OF CRUDE OIL.
1. VACUUM DISTILLATION
HEAVY RESIDUES FROM ATMOSPHERIC DISTILLATION ARE PROCESSED IN A VACUUM DISTILLATION UNIT.
OPERATING UNDER VACUUM LOWERS BOILING TEMPERATURES AND PREVENTS THERMAL CRACKING.
THIS PRODUCES LUBRICATING OIL DISTILLATES.
2. SOLVENT EXTRACTION
IMPURITIES AND UNSTABLE AROMATIC COMPOUNDS ARE REMOVED USING SOLVENTS.
THIS IMPROVES:
- OXIDATION STABILITY
- VISCOSITY INDEX
3. DEWAXING
WAXES ARE REMOVED FROM THE OIL USING SOLVENTS OR CATALYTIC PROCESSES.
THIS ENSURES THE OIL FLOWS PROPERLY AT LOW TEMPERATURES.
4. HYDROFINISHING
FINAL HYDROGEN TREATMENT IMPROVES COLOR, STABILITY, AND PURITY.
ADDITIVES
MODERN LUBRICATING OILS CONTAIN ADDITIVES SUCH AS:
- DETERGENTS
- ANTI-WEAR AGENTS
- ANTIOXIDANTS
- CORROSION INHIBITORS
9. PRODUCTION OF GREASE
WHAT IS GREASE?
GREASE IS A SEMI-SOLID LUBRICANT USED IN MACHINERY WHERE LIQUID OIL CANNOT REMAIN IN PLACE.
IT IS WIDELY USED IN:
- BEARINGS
- AUTOMOTIVE PARTS
- INDUSTRIAL EQUIPMENT
GREASE MANUFACTURING PROCESS
GREASE IS PRODUCED BY MIXING LUBRICATING OIL WITH THICKENING AGENTS.
1. BASE OIL
REFINED LUBRICATING OIL SERVES AS THE BASE.
2. THICKENER
SOAP-BASED MATERIALS SUCH AS:
- LITHIUM SOAP
- CALCIUM SOAP
- SODIUM SOAP
ARE ADDED TO CREATE A SEMI-SOLID STRUCTURE.
3. ADDITIVES
ADDITIVES IMPROVE PERFORMANCE SUCH AS:
- EXTREME PRESSURE RESISTANCE
- RUST PREVENTION
- OXIDATION STABILITY
4. HEATING AND MIXING
THE MIXTURE IS HEATED AND BLENDED IN SPECIALIZED REACTORS UNTIL IT FORMS GREASE.
AFTER COOLING, IT IS PACKED INTO CONTAINERS OR CARTRIDGES.
10. SUPPORTING REFINERY PROCESSES
SEVERAL ADDITIONAL PROCESSES SUPPORT THE PRODUCTION OF PETROLEUM PRODUCTS:
CRACKING
BREAKS LARGE HYDROCARBON MOLECULES INTO SMALLER ONES.
REFORMING
IMPROVES FUEL OCTANE QUALITY.
HYDROTREATING
REMOVES IMPURITIES USING HYDROGEN.
BLENDING
COMBINES DIFFERENT STREAMS TO PRODUCE FINISHED FUELS WITH REQUIRED SPECIFICATIONS.
11. QUALITY CONTROL IN REFINERIES
REFINERIES MAINTAIN STRICT QUALITY CONTROL THROUGH LABORATORY TESTING.
COMMON TESTS INCLUDE:
- OCTANE NUMBER FOR PETROL
- CETANE NUMBER FOR DIESEL
- VISCOSITY FOR LUBRICATING OIL
- FLASH POINT
- SULFUR CONTENT
THESE TESTS ENSURE THE FUEL MEETS INTERNATIONAL STANDARDS.
12. ENVIRONMENTAL PROTECTION IN REFINERIES
MODERN REFINERIES FOLLOW STRICT ENVIRONMENTAL REGULATIONS.
KEY ENVIRONMENTAL MEASURES INCLUDE:
- SULFUR RECOVERY UNITS
- WASTEWATER TREATMENT PLANTS
- GAS FLARING SYSTEMS
- EMISSION CONTROL TECHNOLOGIES
THESE SYSTEMS REDUCE POLLUTION AND PROTECT THE ENVIRONMENT.
CONCLUSION
PETROLEUM REFINERIES PLAY A VITAL ROLE IN MODERN SOCIETY BY CONVERTING CRUDE OIL INTO A WIDE RANGE OF USEFUL PRODUCTS SUCH AS LPG, PETROL, DIESEL, ATF, LUBRICATING OILS AND GREASE. THE REFINING PROCESS INVOLVES SEVERAL COMPLEX OPERATIONS INCLUDING DISTILLATION, CRACKING, HYDROTREATING, SOLVENT EXTRACTION AND BLENDING.
EACH PRODUCT REQUIRES SPECIFIC PROCESSING STEPS TO ENSURE IT MEETS QUALITY STANDARDS FOR PERFORMANCE, SAFETY AND ENVIRONMENTAL COMPLIANCE. ADVANCES IN REFINING TECHNOLOGY CONTINUE TO IMPROVE EFFICIENCY AND REDUCE ENVIRONMENTAL IMPACT.
AS GLOBAL ENERGY DEMAND GROWS, PETROLEUM REFINING REMAINS A CRITICAL INDUSTRY SUPPORTING TRANSPORTATION, MANUFACTURING, AVIATION AND EVERYDAY HOUSEHOLD NEEDS.
